Spark 135 Standard

Spark 135 Standard Technical Specifications

• Engine & Performance
• Performance
• Electrical
• Fuel & Ignition
• Wheels & Tyres
• Dimension
• Chassis & Suspension
• Gear & Transmission

• Emission Control Catalytic Converter
• Engine Type Single Cylinder, 4-Stroke, SOHC, Water Cooled
• Bore X Stroke 54 mm x 58.7 mm
• Compression Ratio 10.9:1
• Exhuast Pipes Single Muffler
• Air Filter Type Oil Filter Paper
• Clutch Type Wet Multi-Plate
• Valve Configuration SOHC
• No. Of Cylinder 1
• Spark Plugs Per Cylinder 1
• Drive Type Chain Drive
• Cooling System Liquid Cooling
• No. Of Strokes 4-Stroke
• Injection Type Indirect Injection
• Valves Per Cylinder 4
• Lubrication System Wet Sump
• Displacement 134.4 cc

• Engine Displacement 134 cc
• Fuel Type Petrol

• Battery Voltage 12V
• Adjustable Headlights Yes
• Tail Lamp Bulb
• Accessory Outlet No
• Head Lamp Halogen
• Indicator Light Bulb

• Ignition Type DC-CDI
• Fuel Supply System EFI
• Fuel Type Petrol
• Start Option Kick

• Rear Wheel Size R17
• Front Wheel Size R17
• Rear Tyre 80/90 R17
• Front Tyre 60/100 R17

• Seating Capacity 2
• Height 1065 mm
• Length 1945 mm
• Width 705 mm
• Oil Tank Capacity 0.8 L
• Wheelbase 1245 mm
• Ground Clearance 140 mm
• Curb Weight 109 kg

• Front Suspension Telescopic
• Body Frame Type Underbone
• Rear Suspension Mono Shock
• Chrome Garnish Yes
• Body Frame Material Mild Steel
• Electronic Suspension Adjustment No
• Seat Type Dual Straight
• Side Wings No

• Transmission Type Manual
• Gear Box 4-Speed

Spark 135 Standard Features

• Safety & Security
• Console
• Differentiating Features
• Brake

• Leg Guards Yes
• Traction Control No
• Engine Check Warning Yes
• Back Rest No
• Pass Switch Yes
• Stability Control No
• Riding Modes Street
• Side Reflectors Optional
• Shutter Lock Yes
• Launch Control No
• Central Locking No
• Engine Immobilizer No
• ABS No
• Anti-Theft Alarm Optional

• Display Screen No
• Side Stand Indicator No
• Speedometer Analog
• Oil Change Indicator No
• Tachometer No
• Navigator No
• Odometer Analog
• Fuel Gauge Analog

• Cruise Control No
• Height Adjustable Seats No

• Rear Brake Drum
• Front Brake Disc

Compare Spark 135 Standard With Similar Bikes

Spark 135 Standard Yamaha Spark 135 Compare

Engine 134.4

Start Option Kick

Front Brake Disc

Compare Now

Compare Similar Bikes

Gallery of Spark 135 Standard

• exterior

Yamaha Spark 135 Standard Exterior Images

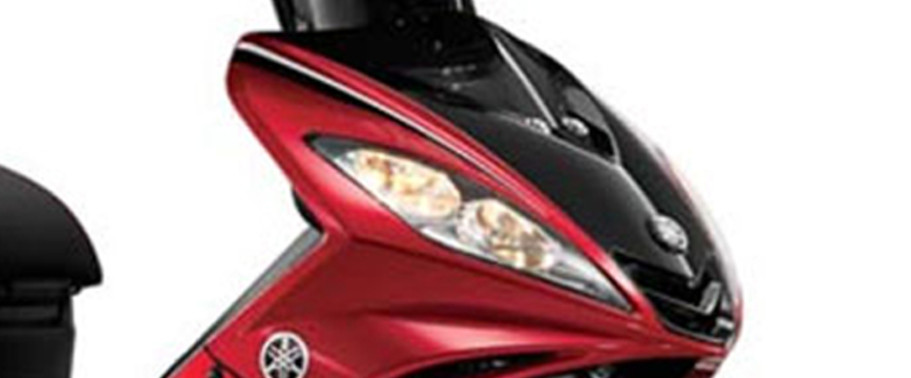

Yamaha Spark 135 has 8 images of its exterior, top Yamaha Spark 135 2025 exterior images include Slant Rear View Full Image, Front Tyre View, Handle Bar View, Head Light View, Side Indicators Front, Exhaust View, Rear Suspension, Rider Seat View.
